Sign Fitting Guidelines

Consistency of sign position is important. Signs should be at the same height throughout the building except for signs which include a control element eg. lifts or door entry systems.

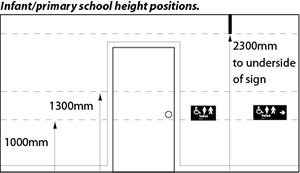

Ideal Sign Height

Confirmation signs should be fitted to the wall adjacent to the door latch. Signs fitted to doors are useless if the door is left open.
Toilet confirmation signs can be fitted directly to the doors.
Directional signs should be fitted to the wall preferably in a position that is visible from connected corridors.

Signs are vital for service providers to communicate with customers. Not only can they advertise the latest products & services, they can also provide practical help to people with vision impairments by having embossed pictograms, text & Braille to give a tactile element to the signs. It is essential that the signs are assessable to touch and positioned at a consist ant height around the building.

Ideal Sign Locations

Note: When fixing to wall surfaces with a coarse finish such as brick, artex etc., we would recommend using one of our frames. These frames have been specifically designed for this purpose to give a more secure fixing.

5 easy steps to fixing your signs.

  1. Clean surface area.
  2. Make sure surface is dry and dust free.
  3. Mark position of sign onto the wall using the above dimensions.
  4. Remove carrier to expose self adhesive backing.
  5. Press sign firmly to wall surface.

5 easy steps to fixing your signs in frames.

  1. Mark position of frame onto the wall using the above dimensions.
  2. Drill holes through the plastic backboard of the frame and drill corresponding holes in the wall.
  3. Remove adhesive liner on the rear of the frame and screw the frame firmly to the wall.
  4. Remove adhesive liner from the front of the frame.
  5. Remove adhesive liner from sign and firmly press the sign onto the frame adhesive.
